Kingspan Architectural Wall Panel
By Kingspan
Product Description

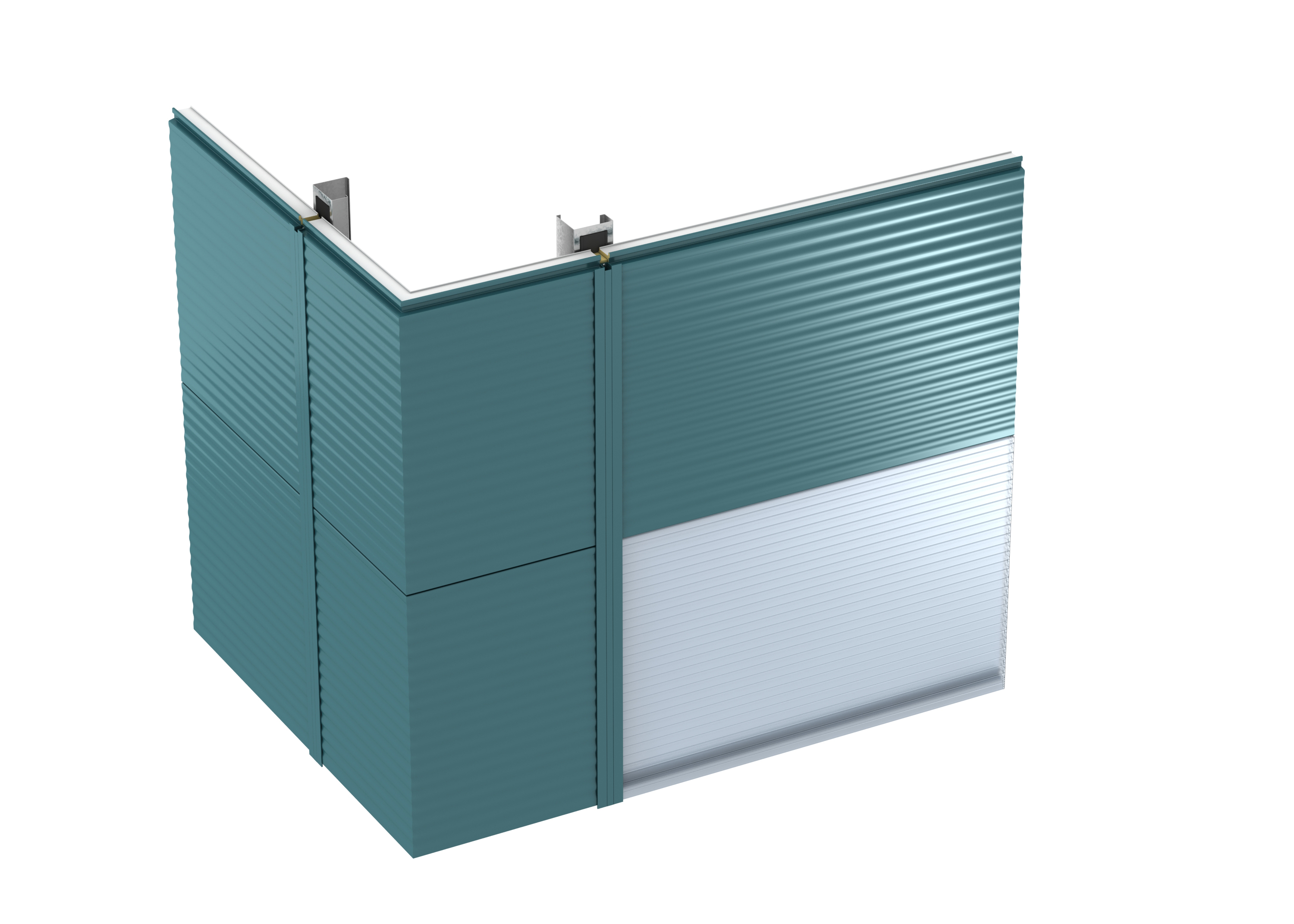

This secret-fix wall panel system offers unprecedented freedom of design and performance. The four distinct profiles (Mini-Micro, Micro-Rib, Plank and Wave) allow you to look beyond traditional insulated panels to create buildings with more inspiring façades.
Architectural Wall Panels are suitable for either horizontal or vertical applications and all profiles integrate with each other.
- Insurer-approved Kingspan PIR insulated panel system
- CodeMark™-approved to the New Zealand Building Code
- ecospecifier global green tag certified to GreenRate Level A
- Environmental Product Declaration (EPD) available

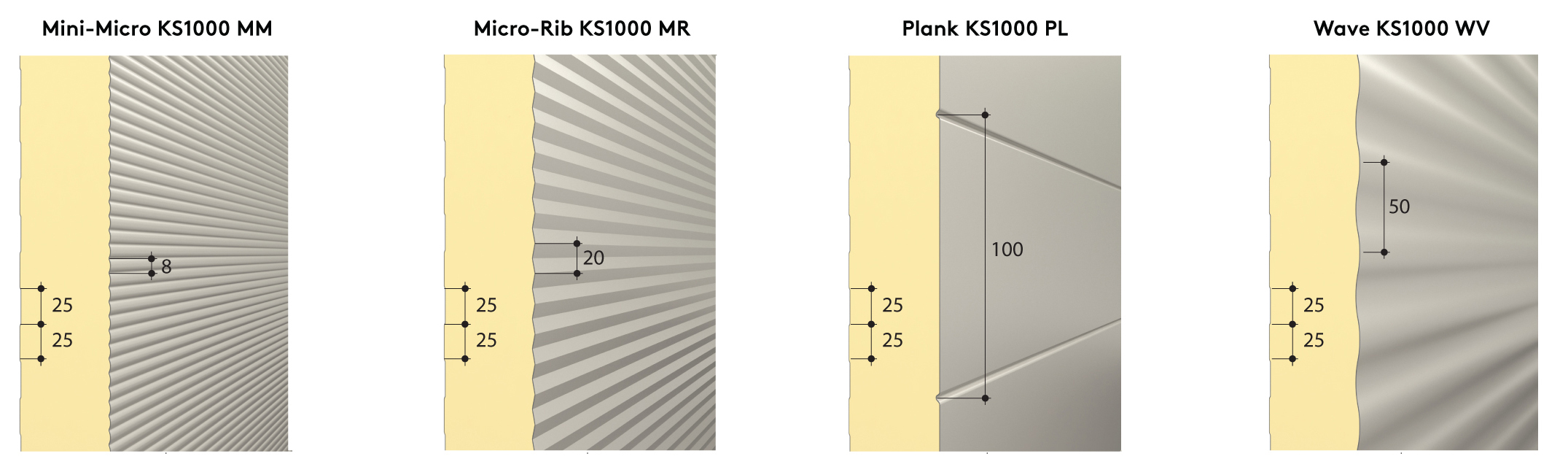

- Available in four distinct profiles (Mini-Micro, Micro-Rib, Plank and Wave) and 1000mm cover width
Technical Files
Compliance Files
CAD Files
-
Kingspan Architectural Wall Panels (AWP) Standard Details (.pdf) - HORIZONTALLY laid.pdf
-
Kingspan Architectural Wall Panels (AWP) Standard Details (.dwg) - HORIZONTALLY laid.dwg
-
Kingspan Architectural Wall Panels (AWP) Standard Details (.pdf) - VERTICALLY laid.pdf
-
Kingspan Architectural Wall Panels (AWP) Standard Details (.dwg) - VERTICALLY laid.dwg
