J09 - Sikla Siaqua Fastening - Intermediate Fixed Point MS w/o Lining
By Steel & Tube
Product Description
Application:
Intermediate fixed point construction for secure absorption of shear forces resulting from branch pipes. By means of intermediate fixed points the arising collateral forces resulting from branch pipe sections are securely absorbed.
Configuration:

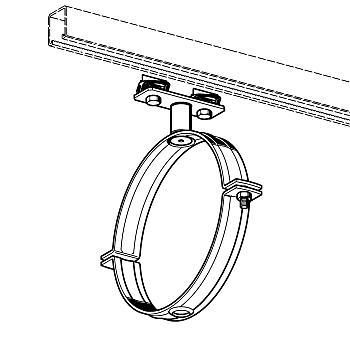

Pipe Clamp Stabil D-3G without lining and pre-assembled fixed point adaption with single thread connection, suitable for sizes 200 up to 315.
Assembly:
The entire fixed point module is pushed in the channel opening and locks automatically. While positioning the distances, the module is securely guided in the channel opening. Then hexagon bolts are tightened.
- For sizes 40 up to 160 Fixed Points MS without lining are used.
