Beacon Solar LED
By SIMX
Product Description
Beacon Solar is a solar powered LED luminaire with PIR sensor.

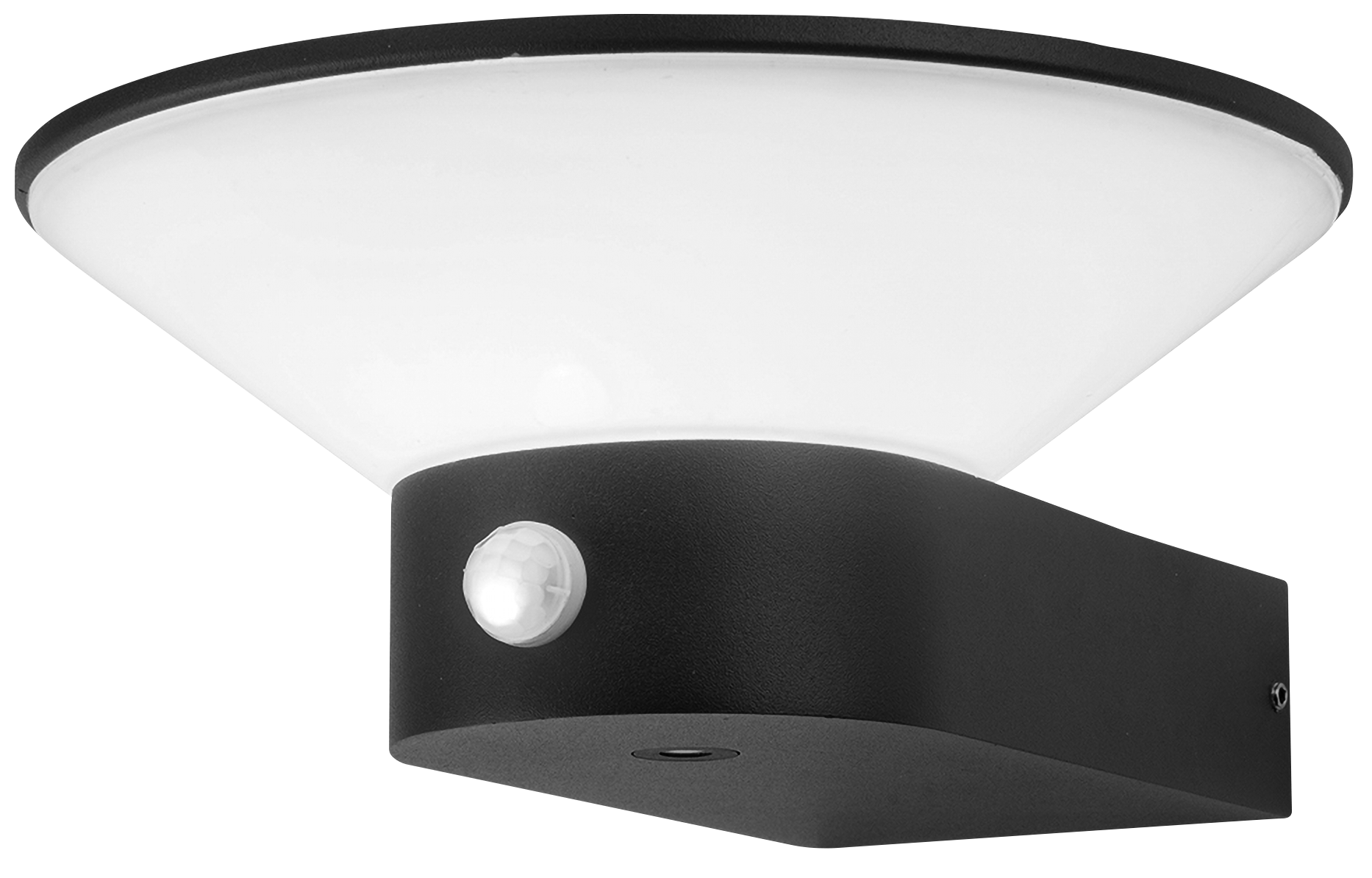

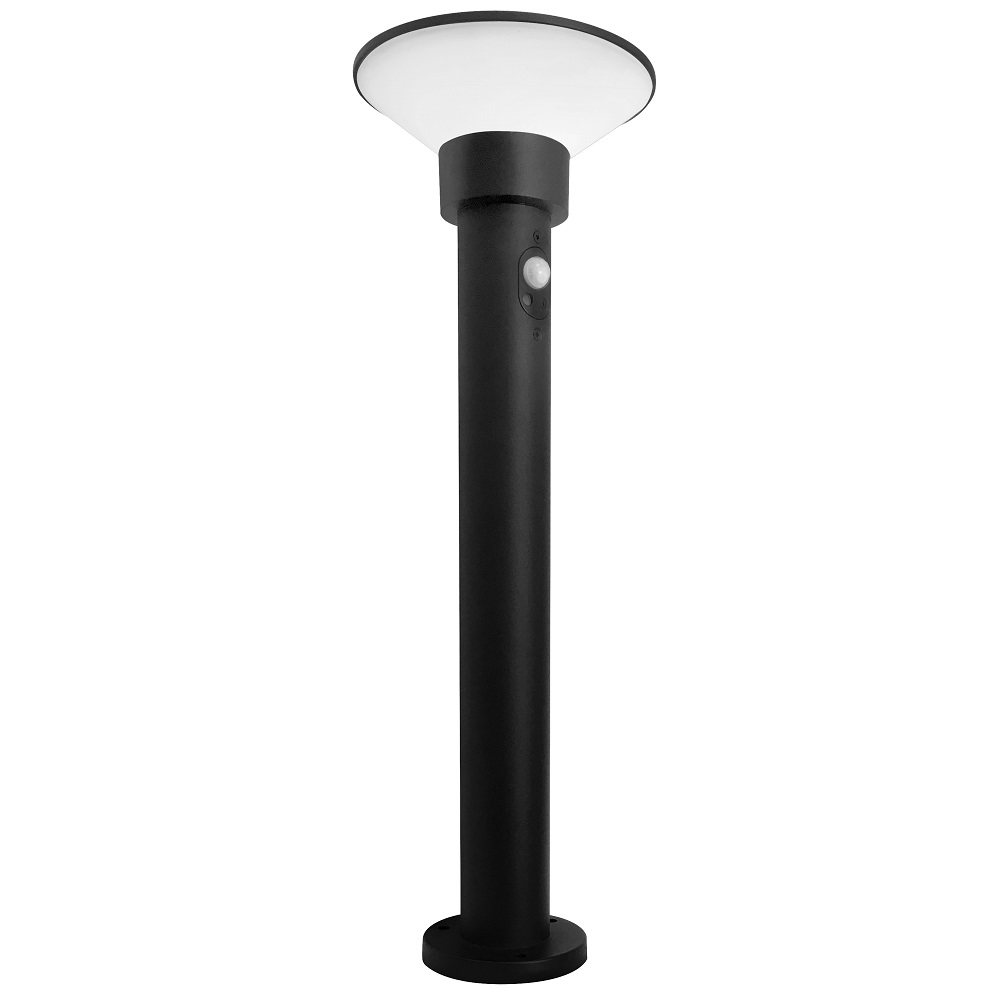

- Options for wall or bollard mounting for multiple applications
- Uses renewable free solar energy with its 2W solar panel
- Switchable all night courtesy light
- Presence activated for full light output. 100 degree detection, with a 6m detection range
- Optional 10% courtesy light function - all night long
- Four sensor modes for user convenience
Mode 1: 20% output on courtesy mode 100% output on PIR activation
Mode 2: 100% output on PIR activation
Mode 3: 50% output for 6 hours (from dusk)
Mode 4: OFF
| Wattage | LED Colour | Luminous flux | Light activation level | Detection Radius | Activation time on | Integral Solar Panel | Code |
|---|---|---|---|---|---|---|---|
| 2.2W | 3000K | 180lm | <10 lux (Dusk) |
100º 6m (max.) |
30 sec | 2W 7V | LHT1166 |
| 2.2W | 3000K | 180lm | <10 lux (Dusk) |
100º 6m (max.) |
10-90 sec | 2W 7V | LHT1167 |
Click the blue order codes to view SDoCs
